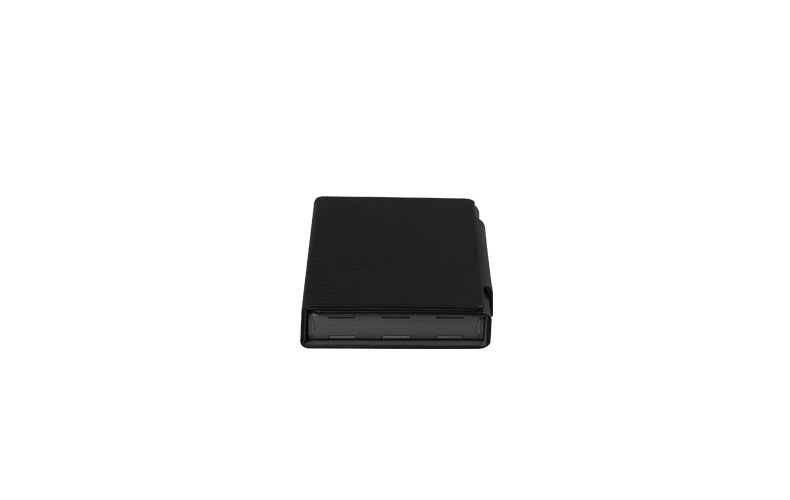

Folding Bluetooth Keyboard KB066
Folding Bluetooth Keyboard KB066 has 64 keys. It can be folded into a small size which fit for almost any bags, easy to carry up with. Compatible 3 major operating system - iOS / Android / Windows. Works with most Bluetooth supported devices. It is easy to setup and type, convenient to write TXT, email, chat and even play games. An ideal gadget for your Smartphone, Tablet and PC.
1.Universal Bluetooth keyboard, after connecting the Bluetooth, need press Fn+ related system key to related Operation system, or the Bluetooth keyboard function will be invalid.
2.The next time use the Bluetooth keyboard, open the left and right key area, and then press any key to realize automatic connecting Bluetooth.
1.Two-way folding design, portable for convenient carry.
2.Automatic power On/Off design, Easy to operate
3.Ideal 64-key layout, completely solve folding keyboard defects because of the structures
4.Baseboard: Imported aluminum, sand surface and oxidation finished.
5.Natural Keyboard design according to Human body engineering, Improve typing feeling
6.Universal compatible Bluetooth keyboard for Android/Windows/iOS tablets, smart phones, laptops and desktops.
7. Press "Fn+C" to achieve pairing process,Fast and easy.
Bluetooth Keyboard Pairing
Step1: Turn on the power toggle switch. The state indicator light will
be on for 10 seconds, and then the light will go off.
Step2: Press on“FN+C”button together on keyboard, the indicator
light will be blinking.
Step3: Turn on Bluetooth setting in your device, your device will
automatically find “Bluetooth Keyboard3.0”, then connect it.
Step4: Device showed Bluetooth had connected, keyboard state
indicator light will turn off.
*The long-lasting rechargeable battery can service you for several
* With no memory effect, the lithium battery can be charged at any
*In order to extend service life, we recommend you turn the
keyboard off when there is long time with no interactive.
Special Keys Description
Long press Fn and combination with F1-F12 and insert keys to the
shift multimedia keys,and mainly be used in the operation of Android
Fn+F-keys(the same color as Fn)
provide shortcuts to useful functions, first press and hold the
FN key; second, press the F-key you want to use.
Charge the batteries
Turn on the Bluetooth keyboard
Battery Status light green: the battery has an adequate charge.
Battery Status light red: recharge the battery. Go to the follow step:
1.Plugs the Micro-USB charging cable into the keyboard
2.Plug the USB port on a computer or power adapter.
3.Charge for 1 to 3 hours. Or until the Battery status light turns off.
Product Model Specifications
1. Bluetooth 3.0 interface standard
2. Operating Distance to 10 meters
3. Modulation system: GFSK
4. Operation Voltage:3.0-4.2V
5. Operating current: <2.5mA
6. Standby Current:<0.3mA
7. Sleeping Current:<40uA
8. Charging Current≥ 200mA
9. Standby Time:>218 days
10. Charging Time:<2 hours
11. Lithium Battery Capacity:210mA
12. Uninterrupted Working Time:84 hours
13. Lithium Battery Life:3 years
14. Lithium Battery Specification:3.0*25*35mm
15. Key Strength:60±10g
16. Key life:3 million strokes
17. Operating Temperature:-10 - +55 C
18. Keyboard Open size : 251.7*89.6*6.6mm Folded size : 146.5*89.6*16.9mm
1 X KB066 Aluminum Foldable Bluetooth Keyboard
1 X Micro-USB Charging Cable
1 X Holder
